Klauke EK 35/4 ML Mini Plier Crimping Tool for Open Barrel Terminal

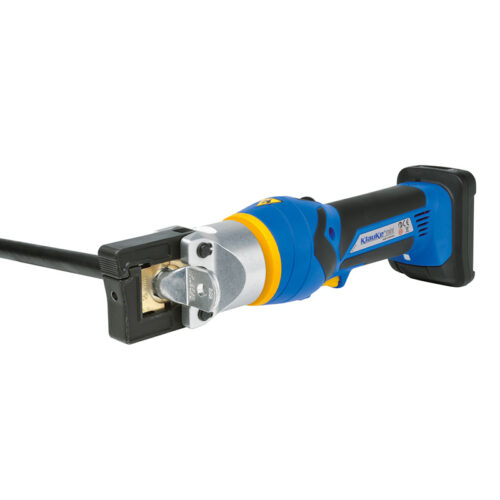

The Klauke EK354ML battery powered crimp tool boasts a one button operation for the control of all its functions. This ergonomic, lightweight and powerful crimping tool is perfectly suited for applications involving high volume crimping. The Ek 35/4 ML offers a large cross section range up to 150mm², featuring a rotatable, slim closed flip top head – making it ideal for crimping in confined areas. With its powerful 10.8 V Lithium Ion battery, and rapid charge time the EK354ML crimping tool is essenitial for any busy engineer.
- Large cross section range up to 150 mm²
- Slim crimping head – ideal when space is critical
- Powerful 10.8 V Li-Ion battery technology with battery charge indicator
Features
- Closed head, flip top style, rotatable
- Simple and safe: One-button operating concept for controlling all tool functions
- Comfortable and secure one-hand operation thanks to 2-component plastic housing with soft lining
- Effortless operations thanks to low weight
- Automatic retraction when operation is complete
- Maintenance display via LED
- Suitable for 4-series interchangeable crimping dies, narrow crimping
Specifications
| Crimping force | 35kN |
| Stroke/opening width | 9mm |
| Crimping range | 6 – 150mm² |
| Crimping cycle | 3s to 4s (depending on crimp cross-section) |
| Number of crimps | approx 145 at 120mm² Cu |
| Battery voltage | 10.8V |
| Battery capacity | 1.5Ah, Li-Ion |
| Battery charging time | approx 40 min |
| Ambient temperature | -10°C to + 40°C |
| Weight including battery | 1.6kg |

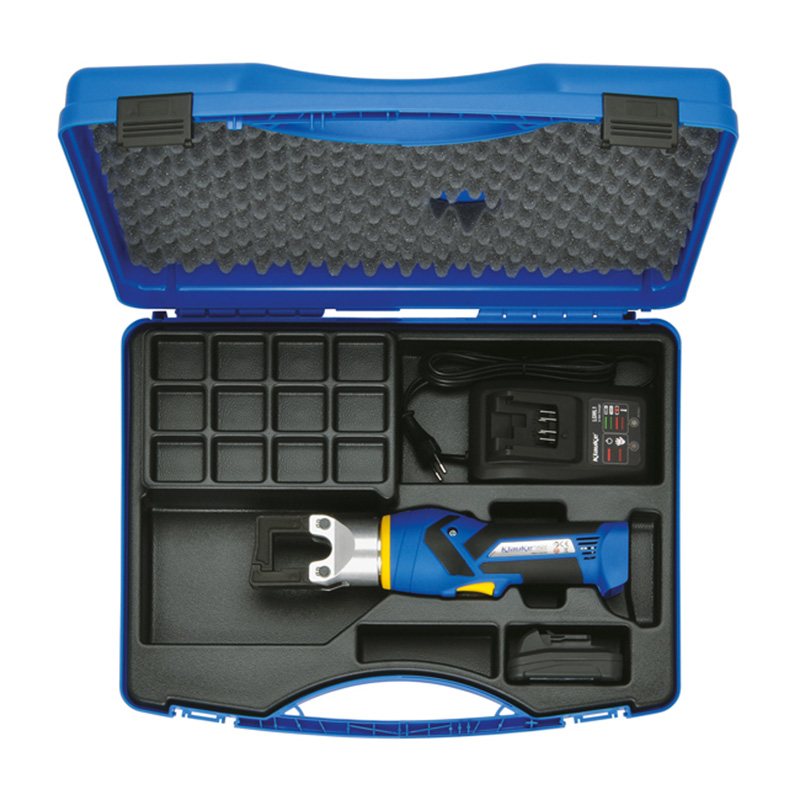

Scope of supply
| EK354ML | Battery powered hydraulic crimping tool 6 – 150mm² |
| RAML1 | 10.8V / 1.5Ah, Li-Ion (16.2Wh) battery |
| LGML1 | Charger for 10.8 V Li-Ion batteries, 230V |

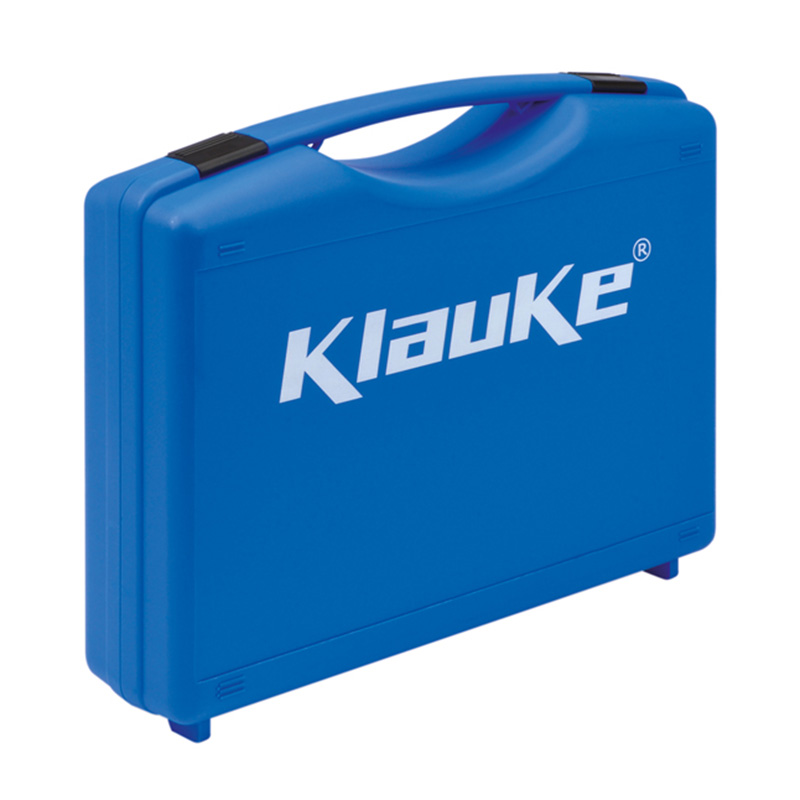

| KKML | Hard Plastic Carrying Case |
Compatability
TUBULAR CABLE LUGS AND CONNECTORS – CU
| Suitable For | Connecting Material | Crimp Range mm² | Crimping Profile | Crimping Dies Available |
| Tubular cable lugs and connectors, blue connection® for compacted conductors according to DIN EN 60228 |  |
6 – 150 |  |
Crimping dies, blue connection HB 4 |
| Tubular cable lugs and connectors, standard type, tubular cable lugs for switch cabinet connections |  |
6 – 150 | |
Crimping dies HR 4 |
| Insulated cable lugs and compression joints, standard type, insulated pin terminals |  |
10 – 70 |  |
Crimping dies HIS 4 |
| Tubular cable lugs and connectors for fine stranded conductors |  |
10 – 50 |  |
Crimping dies HF 4 |
| Tubular cable lugs and connectors for solid conductors |  |
1.5 – 16 | |
Crimping dies HM 4 |
TUBULAR CABLE LUGS AND CONNECTORS – NI, VA
| Suitable For | Connecting Material | Crimp Range mm² | Crimping Profile | Crimping Dies Available |
| Tubular cable lugs and connectors – VA |  |
0.5 – 2.5 | |
Crimping dies HN 4, indent crimping |
| Tubular cable lugs and connectors – VA | |
4 – 16 |  |
Crimping dies HN 4, double indent crimping |
| Tubular cable lugs and connectors – NI |  |
4 – 16 | |
– |
| Tubular cable lugs and connectors – Ni | |
0.5 – 2.5 | |
– |
COMPRESSION CABLE LUGS AND CONNECTORS TO DIN – CU
| Suitable For | Connecting Material | Crimp Range mm² | Crimping Profile | Crimping Dies Available |
| Compression cable lugs (DIN 46235) and connectors (DIN 46237, part 1) according to DIN – Cu |  |
6 – 120 | |
Crimping dies HD 50 |
SOLDERLESS TERMINALS, CONNECTORS AND PIN TERMINALS TO DIN – CU
| Suitable For | Connecting Material | Crimp Range mm² | Crimping Profile | Crimping Dies Available |
| Insulated solderless terminals and pin terminals |  |
10 – 16 | |
Crimping dies HISQ 50 |
| Solderless terminals (DIN 46234), pin terminals (DIN 46230) and solderless connectors (DIN 46341) according to DIN – Cu |  |
6 – 35 | |
Crimping dies HQ 4 |
SLEEVES FOR COMPACTED CONDUCTORS AND SECTOR SHAPED CONDUCTORS
| Suitable For | Connecting Material | Crimp Range mm² | Crimping Profile | Crimping Dies Available |
| Pre-rounding dies for sector-shaped Al and Cu conductors, 3-core and 4-core sector-shaped conductors |  |
10 sm – 150 se / 120 sm |  |
Crimping dies HRU 4 |
COMPRESSION CABLE LUGS AND CONNECTORS ACCORDING TO DIN – AL
| Suitable For | Connecting Material | Crimp Range mm² | Crimping Profile | Crimping Dies Available |
| Compression cable lugs and connectors according to DIN – Al |  |
10 – 70 rm/sm, 16 – 95 re/se | |
Crimping dies HA 4 |
| Compression joints for full tension connections of Aldrey conductors according to DIN EN 50182 |  |
25 – 50 | |
– |
COMPRESSION CABLE LUGS AND CONNECTORS – AL/CU
| Suitable For | Connecting Material | Crimp Range mm² | Crimping Profile |
| Compression cable lugs and connectors – Al/Cu |  |
70 rm/sm, 16 – 95 re/se | |
CLAMPING
| Suitable For | Connecting Material | Crimp Range mm² | Crimping Profile | Crimping Dies Available |
| C-type terminal clamps |  |
4 – 35 | |
Crimping dies HC 4 / HMC 4 |
CABLE END SLEEVES
| Suitable For | Connecting Material | Crimp Range mm² | Crimping Profile | Crimping Dies Available |
| Cable end sleeves |  |
10 – 50 |  |
Crimping dies HAES 4 |
| Twin cable-end sleeves, special trapezoid crimp for fine stranded conductors |  |
2 x 4 – 2 x 16 | |
Crimping dies HZAES 4 |
| Twin-cable end sleeves | |
2 x 4 – 2 x 16 |  |
Crimping dies HZAE 4 |
