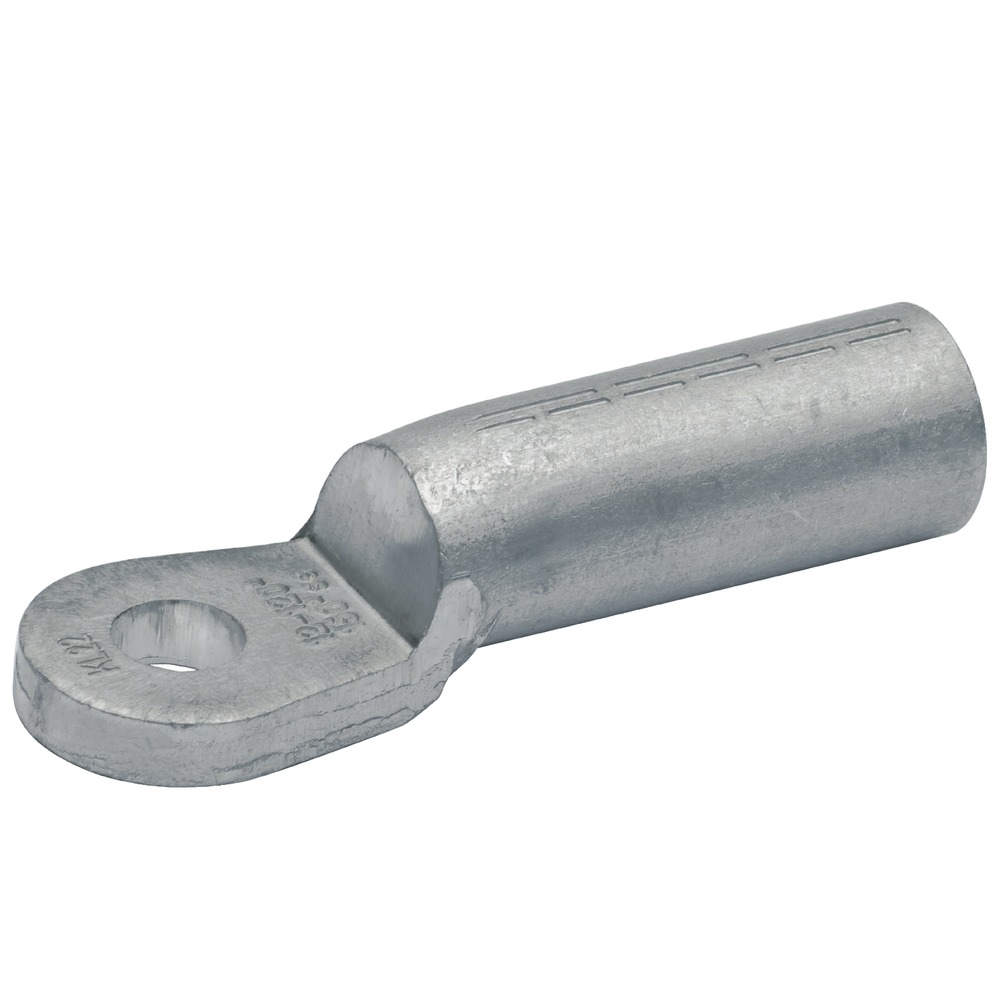

Name: Klauke 274R12V 400mm² Aluminium Compression Lugs
Brand: Klauke
SKU: woocommerce_gpf_18364
Availability: BackOrder

Klauke 274R12V 400mm² Aluminium Compression Lugs

£14.54 excl. VAT

Available on backorder

For non-tension connections of aluminium conductors to EN 60228 and aluminium cables to DIN EN 50182
For pre-rounded sector shaped conductors
To DIN 46329
With code number for clear tool assignment
Filled with contact grease for optimum transfer resistance

For the best results use with Klauke EKM6022CFM or EK12032CFM

SKU: EKM6022CFM

Add to cart

£2,702.64 excl. VAT

Barrier design with oil stop
Optional tin-plated (20 µm) version to connect copper bus bars in dry indoor areas
Simple and safe connection due to flat contact surfaces and internal chamfer
Material: E-aluminium
Surface: Bright

Next working day delivery: £6.90 + VAT for delivery to 1 UK mainland address.

Order by 2pm to qualify for next working day delivery (for items in stock), orders placed after 2pm will be despatched the following working day.

Please contact us if you are interested in any other sizes for this product.

PART NO.	Conn. bolts dia.	Nominal cross-section mm² (rm/sm)	Nominal cross-section mm² (re/se)	Code	Number of crimps Al (7 mm)	Number of crimps Al wide)	Weight/100 pcs. ~kg	PU/pcs.
263R8V	M 8	16	25	12	4	2	1,20	4
263R10V	M 10	16	25	12	4	2	1,20	4
264R8V	M 8	25	35	12	4	2	1,30	4
264R10V	M 10	25	35	12	4	2	1,24	4
264R12V	M 12	25	35	12	4	2	1,22	4
265R10V	M 10	35	50	14	5	2	1,98	4
265R12V	M 12	35	50	14	5	2	2,50	4
266R8V	M 8	50	70	16	5	2	2,75	4
267R8V	M 8	70	95	18	6	3	3,45	4
267R10V	M 10	70	95	18	6	3	3,80	4
267R12V	M 12	70	95	18	6	3	3,35	4
268R10V	M 10	95	120	22	6	3	6,90	4
268R12V	M 12	95	120	22	6	3	4,92	4
268R16V	M 16	95	120	22	6	3	6,00	4
269R10V	M 10	120	150	22	6	3	5,95	4
269R12V	M 12	120	150	22	6	3	5,84	4
269R16V	M 16	120	150	22	6	3	6,60	4
270R10V	M 10	150	185	25	6	3	8,50	4
270R12V	M 12	150	185	25	6	3	7,73	4
270R16V	M 16	150	185	25	6	3	7,60	4
271R10V	M 10	185	240	28	-	-	11,00	4
271R12V	M 12	185	240	28	6	3	9,88	4
271R16V	M 16	185	240	28	6	3	10,10	4
271R20V	M 20	185	240	28	6	3	10,00	4
272R10V	M 10	240	300	32	8	3	15,50	4
272R12V	M 12	240	300	32	8	3	13,80	4
272R16V	M 16	240	300	32	8	3	13,48	4
272R20V	M 20	240	300	32	8	3	15,00	4
273R12V	M 12	300	-	34	-	-	17,60	1
273R16V	M 16	300	-	34	8	3	17,28	1
273R20V	M 20	300	-	34	8	3	17,40	1
274R12V	M 12	400	-	38	--	4	38,00	1
274R16V	M 16	400	-	38	--	4	37,40	1
274R20V	M 20	400	-	38	--	4	40,20	1
275R12V	M 12	500	-	44	--	4	43,70	1
275R16V	M 16	500	-	44	--	4	43,30	1
275R20V	M 20	500	-	44	--	4	43,00	1

Klauke 274R12V 400mm² Aluminium Compression Lugs
