EC 50 ML Electromechanical cutting tool
The kit contains:
Klauke EC-50-ML UK cutting tool for knotted chain, steel rope and multi-strand conductor
- The Klauke micro with intuitive PowerSense function combines the benefits of manual cutting tools with the convenience of battery powered hydraulic cutting tools
- Excellent cutting results with minimum effort
Features
- One-button operating concept for controlling all tool functions
- PowerSense function: Manual pre-clamping by hand, motorised cutting
- Electronic control with locking function monitors full closing of the cutting dies
- Ergonomic 2C housing in the Klauke “In-line Design”
- Tool fixing point for use with balancer aid or lanyard
- Very low weight and high speed for maximum efficiency
- Powerful drive technology for effortless operations
- Powerful 10.8V Li-Ion battery with charge status display
- LED for work area illumination
- Maintenance display via LED
Suitable for
- Knotted chains
- Multi-stranded round conductors up to 25 mm², e.g. to EN 60228 Cl. 2
- Copper rails up to 3 mm x 10 mm
- Steel ropes and similar materials up to 3 mm

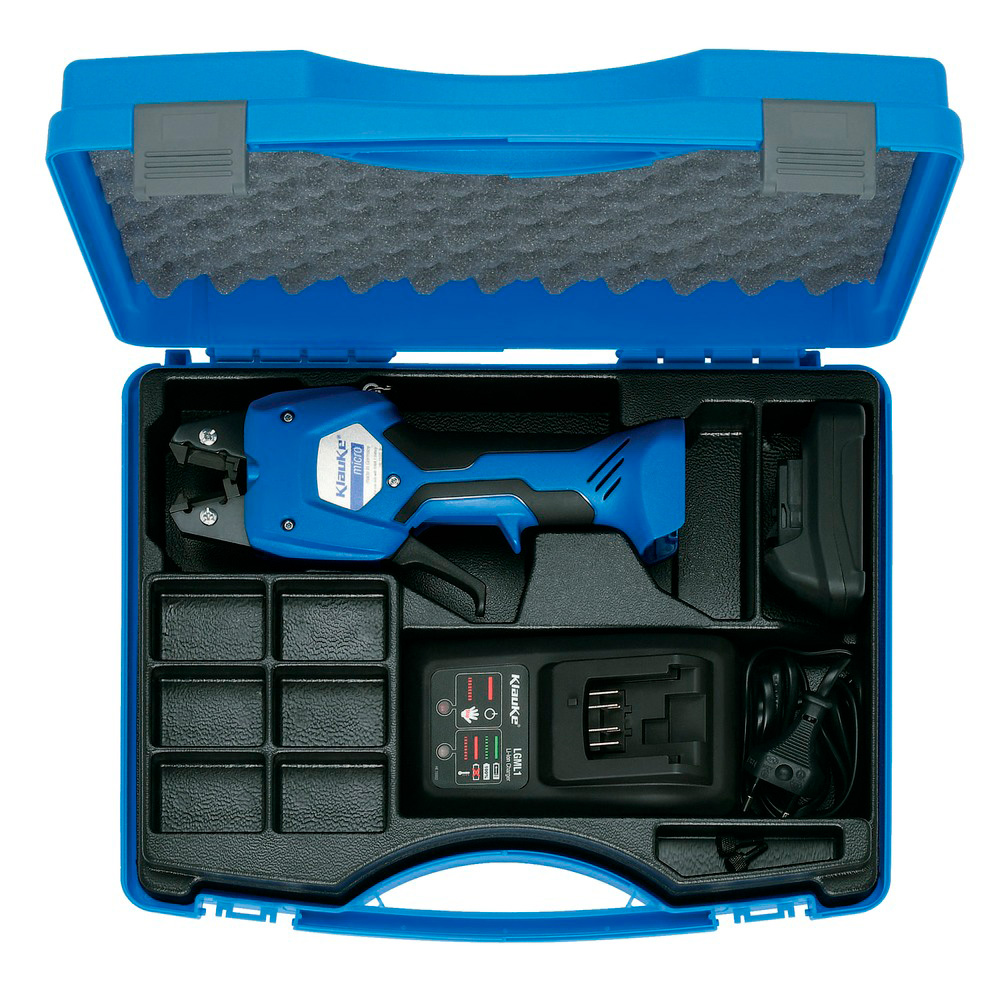

Scope of supply
| EKWF50ML | Electromechanical Tool |
| RAML1 | Li-Ion Battery 10.8V |
| LGML1 | Battery Charger 230V |
| S502 | S502 Die set for EK50ML |
| KKEK50ML | Plastic carry case |
Specifications
| Cutting range | up to 13mm dia |
| Cutting time | <2s |
| Battery voltage | 10.8V |
| Battery capacity | 2.5Ah, Li-Ion |
| Battery charging time | approx 45 min |
| Ambient temperature | -10°C to + 40°C |
| Weight including battery | 0.96kg |
